Installing TRIRIGA Indoor Maps

Download installation files

Instructions to obtain the installation files will be provided with your email of entitlement to the software.

Estimated time

The installation may take 1-2 hours to complete.

Steps to install

A) Installing Object Migration (OM) package and modifying out-of-the-box resources

Install the OM package TRI_Esri_Indoor_Connector_vx.x.x.zip to your TRIRIGA instance. This will create a new perceptive app named triLocateMap.
Add new LocateMap app to Workplace Services UI To use this new app instead of the default Locate app, you must make the following change on WorkplaceServices webview files. Note, that by completing these steps, you will redirect traffic when you click on the Locate link on workplace services, the app displayed will be the new LocateMap app installed with the OM package capable of integrating with Esri Indoors.
1. Navigate to the Web View Designer (Tools > Web View Designer).
2. Click triWorkplaceServices web view.
3. Click triview-workplace-services-dev.html view file.
4. Click the Download View File icon.
5. Edit the downloaded triview-workplace-services-devhtml file and replace the line with <tricore-url hidden raw-url="/p/web/locate" bind-url="{{locateMainUrl}}"></tricore-url> to <tricore-url hidden raw-url="/p/web/locateMap" bind-url="{{locateMainUrl}}"></tricore-url>
6. Upload the edited file by clicking the Upload View File icon and picking the edited file.
7. Click Save & Close to save the edited file.
8. The Workplace Services production file can be vulcanized with this change now or later. If you don’t wish to do this now, you can change the Production filename to be the same as the Development filename (i.e. set Production filename to triview-workplace-services-dev) and click Save & Close on the web view. If you want to do vulcaniztion now, then follow these steps:
  1. Install NodeJS from https://nodejs.org.
  2. Download and install the @tririga/tri-vulcanize tool using npm install @tririga/tri-vulcanize -g.
  3. Download and install the tri-pull NodeJS tool using npm install @tririga/tri-pull -g.
  4. Download and install the tri-deploy NodeJS tool using npm install @tririga/tri-deploy -g.
  5. Pull all the files for triview-workplace-services from your TRIRIGA instance using following command:
    tri-pull -t URL-for-your-TRIRIGA-instance -u your-userID -p your-password -v triview-workplace-services -d triWorkplaceServices -y 1`
  6. Vulcanize the files for using the following command:
    tri-vulcanize --url URL-for-your-TRIRIGA-instance --user your-userID --password your-password --view triview-workplace-services --component triview-workplace-services-dev.js --output triWorkplaceServices/triview-workplace-services.html`
  7. Deploy the vulcanized file using the following command:
    tri-deploy -t URL-for-your-TRIRIGA-instance -u your-userID -p your-password -v triview-workplace-services -d triWorkplaceServices --files triview-workplace-services.html -y -1
Add triEsriMaps tab to the triBuilding form
1. Go to Tools > Form Builder .
2. Click the radio button for the Location module and the triBuilding form.
3. Click the Revise link from the links at the top right.
4. Click the triEsriMapsBuildingTab link.
5. Click Copy Tab link from the links at top right.
6. Select triBuilding as the Target Business Object and triBuilding as the Target form.
7. Click Apply.
8. Go back to Form Builder and click on the radio button for the triBuilding form.
9. Click the Publish link from the links at the top right.
Add triEsriMaps tab to the triFloor form
1. In the Form Builder with Location module selected, click the radio button for the triFloor form.
2. Click the Revise link from the links at the top right.
3. Click the triEsriMapsFloorTab link.
4. Click Copy Tab link from the links at top right.
5. Select triFloor as the Target Business Object and triFloor as the Target form.
6. Click Apply.
7. Go back to Form Builder and click on the radio button for the triFloor form.
8. Click the Publish link from the links at the top right.
Add a data source to the existing triLocate model In order to link the existing Locate app with the new LocateMap app, you must first add a data source to the existing triLocate model.
1. Go to Tools > Model Designer and search for triLocate.
2. Add a new data source with the following values:
  1. Name: Building Lookup
  2. Exposed Name: buildingLookup
  3. Data Source Type: Query
  4. Multiple Records: TRUE
  5. Module: Location
  6. Business Object: triBuilding
  7. Query Name: triBuilding - UX - LocateMap - Building
3. Add a field on this data source:
  1. Name: Building Record ID
  2. Exposed Name: buildingRecordId
  3. Field Name: Building Record ID
4. Add another field on this data source:
  1. Name: Esri Map ID
  2. Exposed Name: esriMapId
  3. Field Name: Esri Map ID
Modify existing Locate UX app’s location context component to open new LocateMap UX app.
1. Go to Tools > Web View Designer.
2. Click triapp-location-context-v3 and tricomp-location-context.js.
3. Click the Download View File icon.
4. Edit the downloaded tricomp-location-contextjs file .
5. Search for this line of code this.fire("select-building", {building: finalBuilding});.
6. Add this line of code below it this.fire("refresh-building", {newBuildingId: newBuilding._id});.
7. Click the Upload View File icon and choose the file you just edited.
8. Click Save & Close link from the links at the top right.

Modify existing Locate UX app to open new LocateMap UX app.

Navigate to Tools > Web View Designer.
Click on triLocate and trimain-locate.js.
Click the Download View File icon.
Edit the downloaded trimain-locatejs file .
Search for </style>.

Add the following lines of code AFTER the </style> line:

<triplat-ds id="buildingLookup" name="buildingLookup" filtered-data="">
   <triplat-query>
      <triplat-query-filter name="buildingRecordId" operator="equals" value="[[overrideBuildingId]]" ignore-if-blank>
      </triplat-query-filter>
   </triplat-query>
</triplat-ds>

Search for this line of code listeners:.

BEFORE the listeners section, add this line of code:

observers: [ "_checkEsriStatus(_buildingLookup)", ],

INSIDE the listeners section, add this line of code:
```
'refresh-building': '_refreshBuilding',
```
(Note, a comma has been added to the end of the above line, so add in the middle of the listeners.)

After the listeners section, add this block of code:

_checkEsriStatus: function(e) {
   if (this.overrideBuildingId != "" && this._buildingLookup[0] && this._buildingLookup[0].esriMapId) {
      this._isEsriMapAvailable = false;
      var currentUrl = window.location.href;
      var newUrl = currentUrl.substring(0,currentUrl.indexOf("overrideBuildingId=") + 19) + this._buildingLookup[0].buildingRecordId;
      newUrl = newUrl.replace("locate", "locateMap");
      window.location.href = newUrl;
   } else {
      this._isEsriMapAvailable = false;
   }
},

_refreshBuilding: function(e) {
   this.overrideBuildingId = e.detail.newBuildingId;
   this._checkEsriStatus(e);
},

Click the Upload View File icon and choose the file you just edited.
Click Save & Close link from the links at the top right.

Bundle up the triLocate app Note: You must install NodeJS. See https://nodejs.org for instructions.
1. Download and install the @tririga/tri-bundler tool using npm install @tririga/tri-bundler -g, the tri-pull NodeJS tool using npm install @tririga/tri-pull -g, and the tri-deploy NodeJS tool using npm install @tririga/tri-deploy -g.
2. Pull all the files for triview-locate from your TRIRIGA instance using following command:
```
tri-pull -t URL-for-your-TRIRIGA-instance -u your-userID -p your-password -v triview-locate -d triLocate`
```
3. Bundle the files for triview-locate using the following command:
```
tri-bundler --url URL-for-your-TRIRIGA-instance -u your-userID -p your-password -v triview-locate --component triview-locate-dev.js --output triLocate/triview-locate.js`
```
4. Deploy the bundled file using the following command:
```
tri-deploy -t URL-for-your-TRIRIGA-instance -u your-userID -p your-password -v triview-locate -d triLocate --files triview-locate.js
```
  Information: If you have difficulties with the above tools, more information about them can be found at https://www.npmjs.com/package/@tririga/tri-pull, https://www.npmjs.com/package/@tririga/tri-bundler, and https://www.npmjs.com/package/@tririga/tri-deploy.

B) Enabling buildings

TRIRIGA will need to be populated with data for each building and each floor that has indoor maps defined for them within Esri ArcGIS. On the record for buildings and floors there is a new tab named triEsriMaps.

See configuration page for more details on the following.

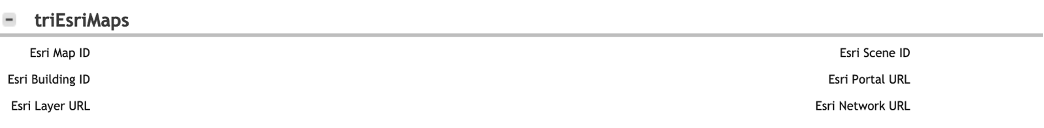

alt

Esri Map ID: Which web map to load from the ArcGIS server. Obtain this ID from the ArcGIS Portal.

Esri Building ID: ID that identifies this building on ArcGIS. Obtain this ID from the ArcGIS Pro.

Esri Building Default Zoom: zoom level appropriate for the defined building. This value varies with the footprint of the building, but 20 is commonly sufficient for most buildings.

Esri Building Default Rotation: rotation appropriate for the defined building. This value defaults to 0, which corresponds to North at the top of the screen. However depending on the shape of the building you might want to rotate it for convenience.

Esri Portal URL: URL of the ArcGIS Server. https://{hostname}:{port}/{context_root}/portal

Esri Network URL: the URL of the ArcGIS indoor navigation service for this facility. Obtain this ID from the ArcGIS Portal.

Note: If not defined yet, GIS Latitude and GIS Longitude will need to be set for the building on the building form found in TRIRIGA inside the Primary Address section.

C) Enabling floors

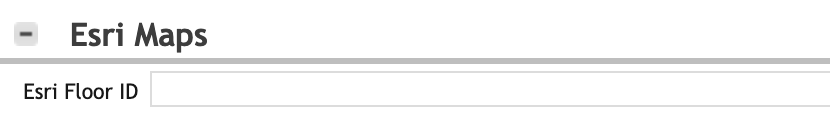

alt

Esri Floor ID: ID that identifies this Floor on ArcGIS

This information is defined on your Esri server and can be retrieved from ArcGIS Pro.

An example on how to fill this info is displayed below.

Building:

alt

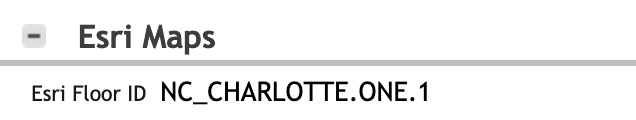

Floor:

alt

D) Setting up Esri user

Create a task username and password within Esri ArcGIS Portal to be used for authentication by TRIRIGA. For example:

username="tririga-maps"
password="tririga-maps-secret"

E) Configuring the proxy

After installing the OM package for your TRIRIGA Maps integration, a new file named tokenfetcher.config will be created and needed to be populated with settings.
To obtain the file from within TRIRIGA’s dashboard, go to Tools > System Setup > System > Class Loader > EsriIndoorMapsTokenFetcher > tokenfetcher.config and click the download button.

An example of how this file should be configured is displayed below. In this example, the ESRI server (where the esri map is located) is defined as https://your-mapping-server.ibm.com/portal. (please note, if your server has an additional context root it must be included before /portal in the example below.)

<?xml version="1.0" encoding="utf-8" ?>
<ProxyConfig allowedReferers="*"
                logFile="proxy_log.log"
                logLevel="INFO"
                mustMatch="true">
  <serverUrls>
        <serverUrl url="https://your-mapping-server.ibm.com/portal"
            username="$REPLACE_THIS_USERNAME"
            password="$REPLACE_THIS_PASSWORD"
            tokenServiceUri="https://your-mapping-server.ibm.com/portal/sharing/rest/generateToken"
            rateLimit="600"
            rateLimitPeriod="60"
            matchAll="true">
        </serverUrl>
  </serverUrls>
</ProxyConfig>

The username and password must be replaced with Esri Portal user created in step C.

The TRIRIGA server requires a secure connection (HTTPS) to the Esri ArcGIS installation. If a self-signed certificate has been used in the ArcGIS installation, or if it has been signed by the DigiCert Root Certificate Authority or a less common certificate authority, then you will need to follow the instructions for WebSphere Liberty or WebSphere Application Server below to allow TRIRIGA to trust the connection.

WebSphere Liberty

You will likely have to add the root and intermediate certs of your Esri server to the TRIRIGA server. This command can be used to get the certificates.

echo q | openssl s_client -showcerts -connect your-mapping-server.com:443 > your-mapping-server.com.cer

Use the following steps as a guide on how to add the certificates to the trusted store and restart the TRIRIGA server.

Go to “cd c:\tririga\wlp\bin”, find out which JRE/JDK is being used by “type run.bat”, and look for the JAVA_HOME variable.
Go to “cd c:\program files\java<jre/jdk>\jre\lib\security”.
Add the certificates obtained from the openssl command above to the trusted certificate authorities file (default password is changeit). keytool -import -alias esri-certs -file your-mapping-server.com.cer -keystore cacerts
Check that the certificates were successfully installed in the trusted certificate authorities file (default password is changeit) - keytool -list -keystore cacerts.
Go to “cd c:\tririga\wlp\bin”, stop the server “shutdown.bat”, and start the server “run.bat”.

WebSphere Application Server (WAS)

To add certs to the cacerts in the JRE, see the following support documentation.

To add certs to WAS, refer to this Knowledge Center Document.

F) Adding model to security group

The imported OM package contains a new model for the UX app. Non-admin must be given proper access to this model. To accomplish this, you can either create a new security group or modify an existing. The following steps modify the TRIRIGA Request Central - Fundamentals security group to allow users, that have this group, to read, update, create, and delete the triLocateMap model.

From the TRIRIGA Main UI, go to Tools > Adminstration > Security Manager.
Click the TRIRIGA Request Central - Fundamentals security group.
In the displayed window, click Access.
Scroll down and expand the Models root, and select triLocateMap.
In the “Model Access” panel on the right, select Read,Update,Create and Delete.
Click Save & Close.

Verifying the installation

Launch the new enhanced Locate application https://{hostname}:{port}/{context_root}/p/web/locatemap
Select the building that has Esri Indoor Maps configured. You will see the enhanced UI with the Esri map in the Locate App.
